1231

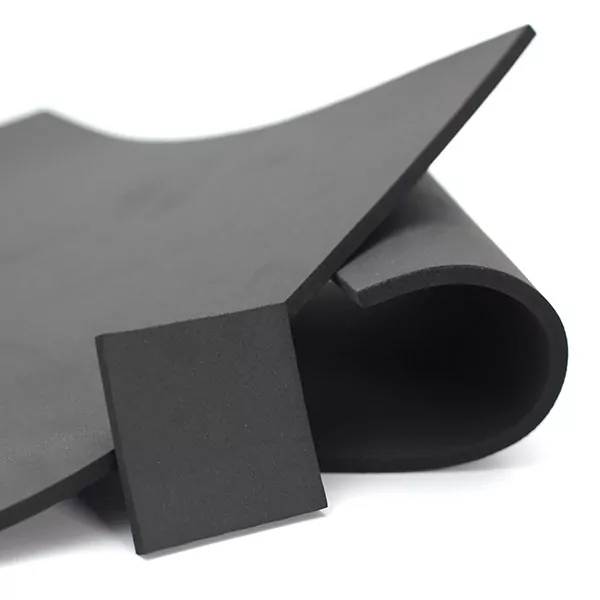

Our 1231 elastomeric blended foam is used in a wide variety of tape, sealing and gasket applications. It comes in Black and has a 4 – 9 PCF / 64 – 144 kg/m³ density range and is a 2C1 grade of foam. The service temperature range is – 40 °F to 150 °F for high continuous use or 200 °F (high intermittent use). The foam meets UL94 HF1 @ 1.5mm or higher. It has a Resilience rate of 15% and a Fluid Immersion rate of 250%.
Industry and OEM Specifications:
FMVSS302
| Product Code | 1231 |
| Type | Elastomeric Blend |
| Brand | Elastomeric |
| Density | 6.5 |
| Cell Structure | Closed Cell |
Additional information
| Product Type | Elastomeric Blend |
|---|---|
| Brand | Elastomeric |
| Pure Density | 6.5 |
| Oil/Fuel Resistence | YES |
| Sulphur Free | NO |
| UV Resistance | NO |
| Fire Retardant | UL94 |
| Applications | AUTOMOTIVE GASKETING |
| Grade | 2A1, 2C1 |
